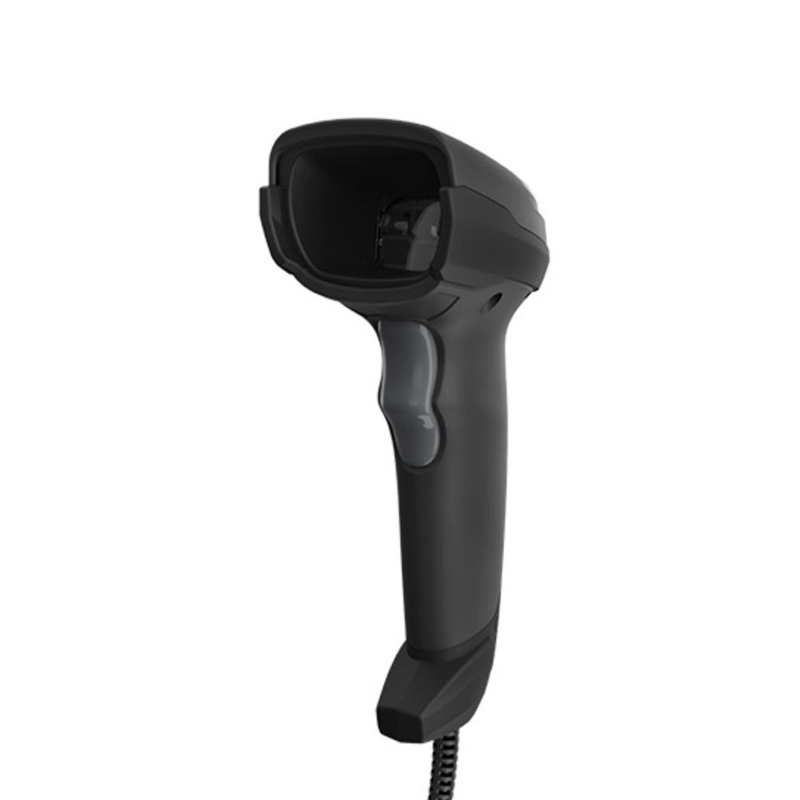

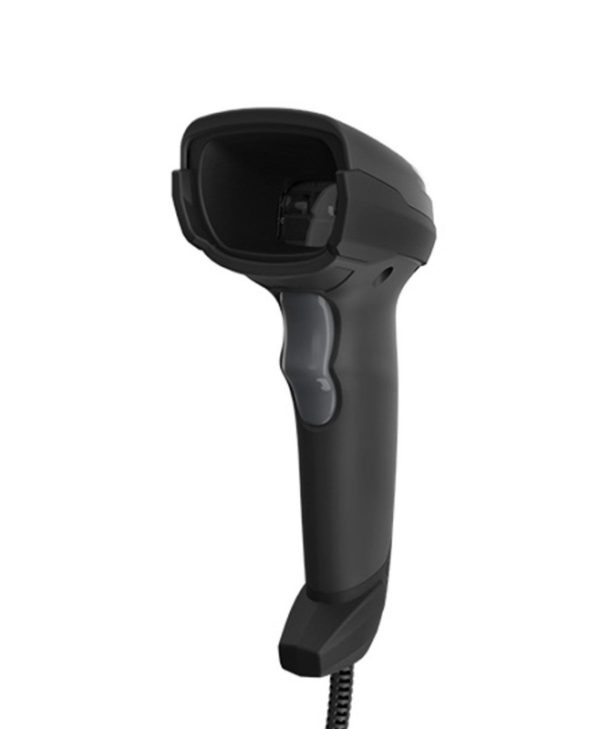

HPRT N101 Barcode Scanner 1D, 2D Black

Name: HPRT N101 Barcode Scanner 1D, 2D Black
SKU: W37437
Price: 61.70 EUR
Availability: InStock

Κωδικός προϊόντος: W37437

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

61,70 € με ΦΠΑ

Διαθέσιμο εντός 24 ωρών Το προϊόν θα βρίσκεται στο κατάστημα σε 24 ώρες για παραγγελίες μέχρι τις 15:00

Σύγκριση

4 Άτομα που παρακολουθούν αυτό το προϊόν τώρα!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Τρόποι πληρωμής:

Περιγραφή
ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Περιγραφή

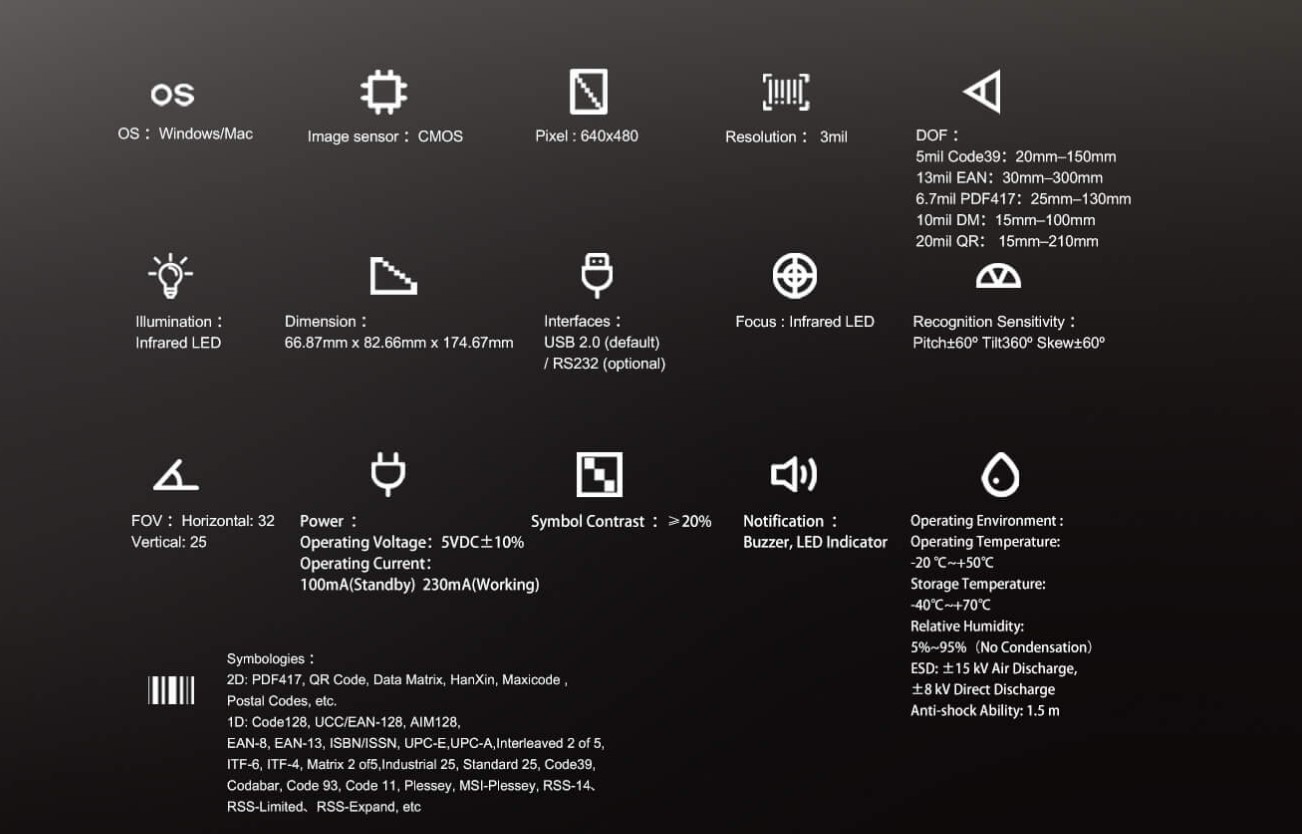

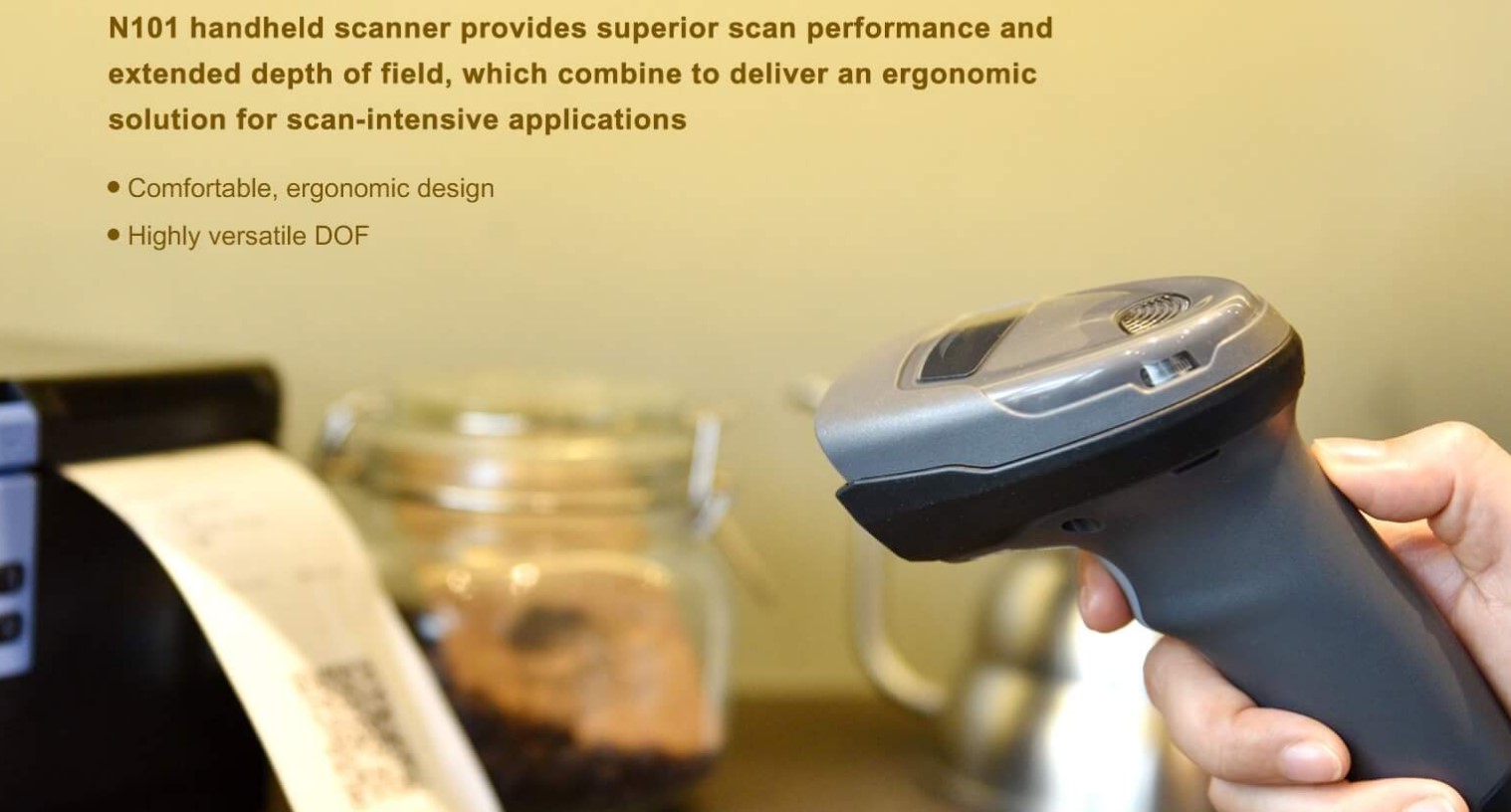

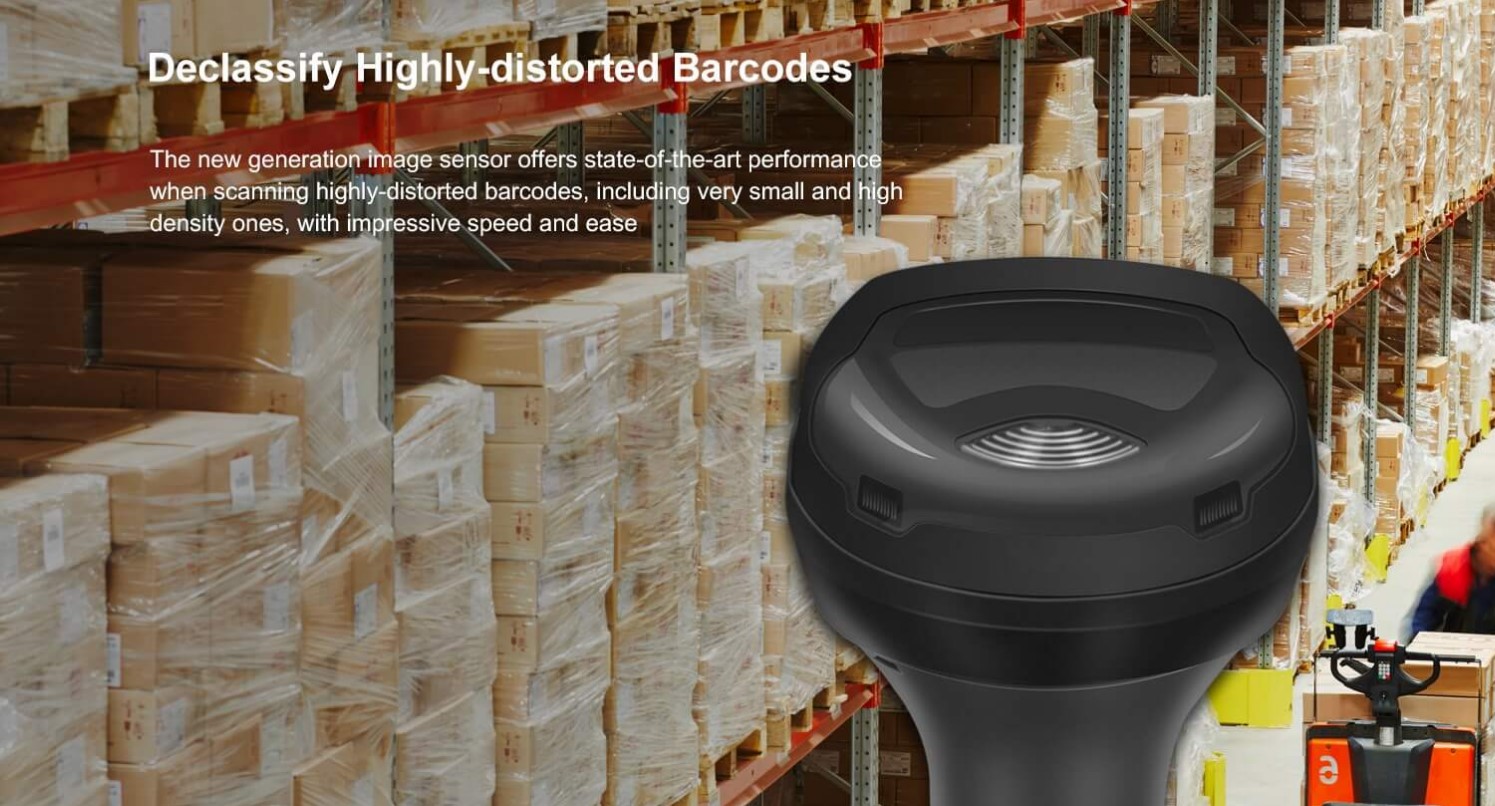

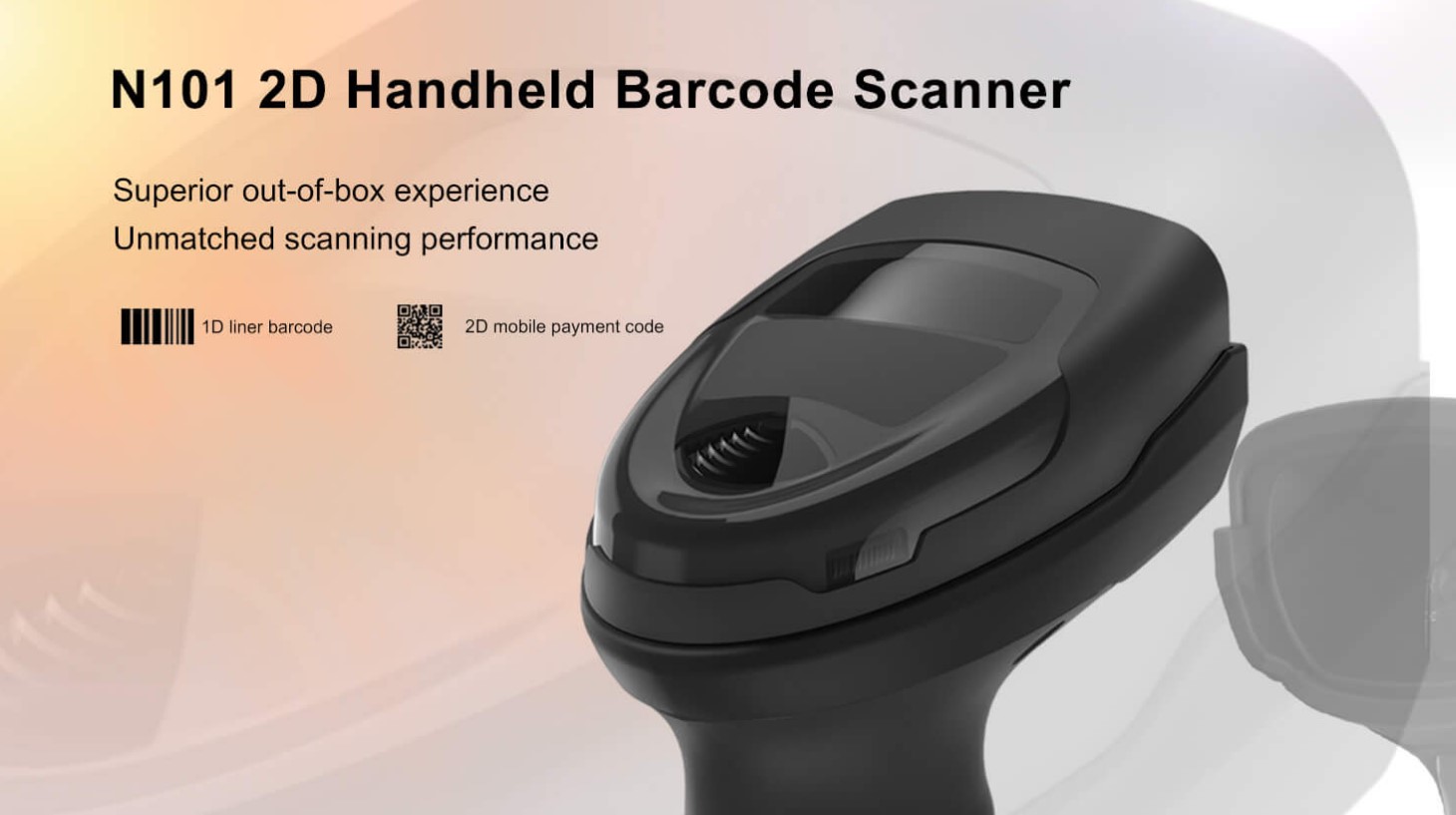

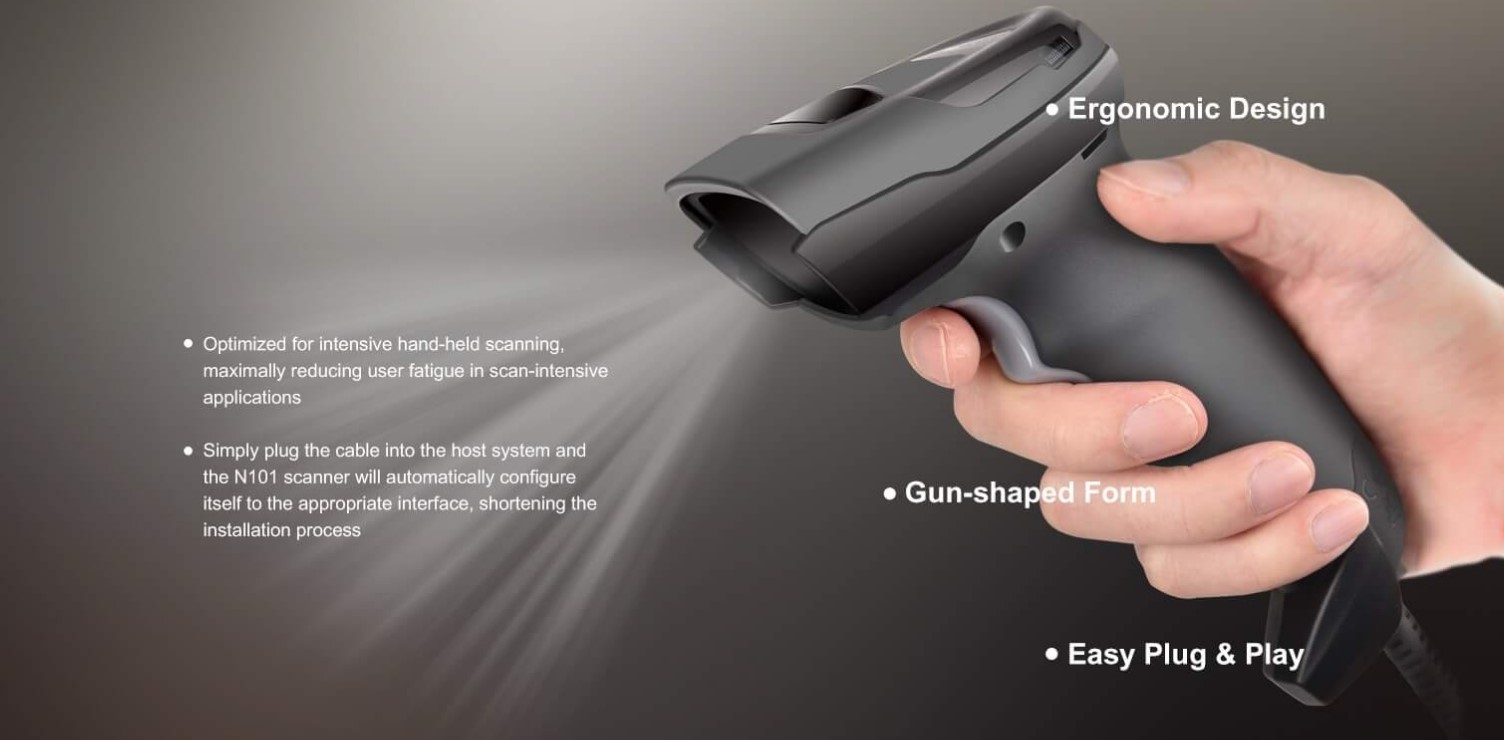

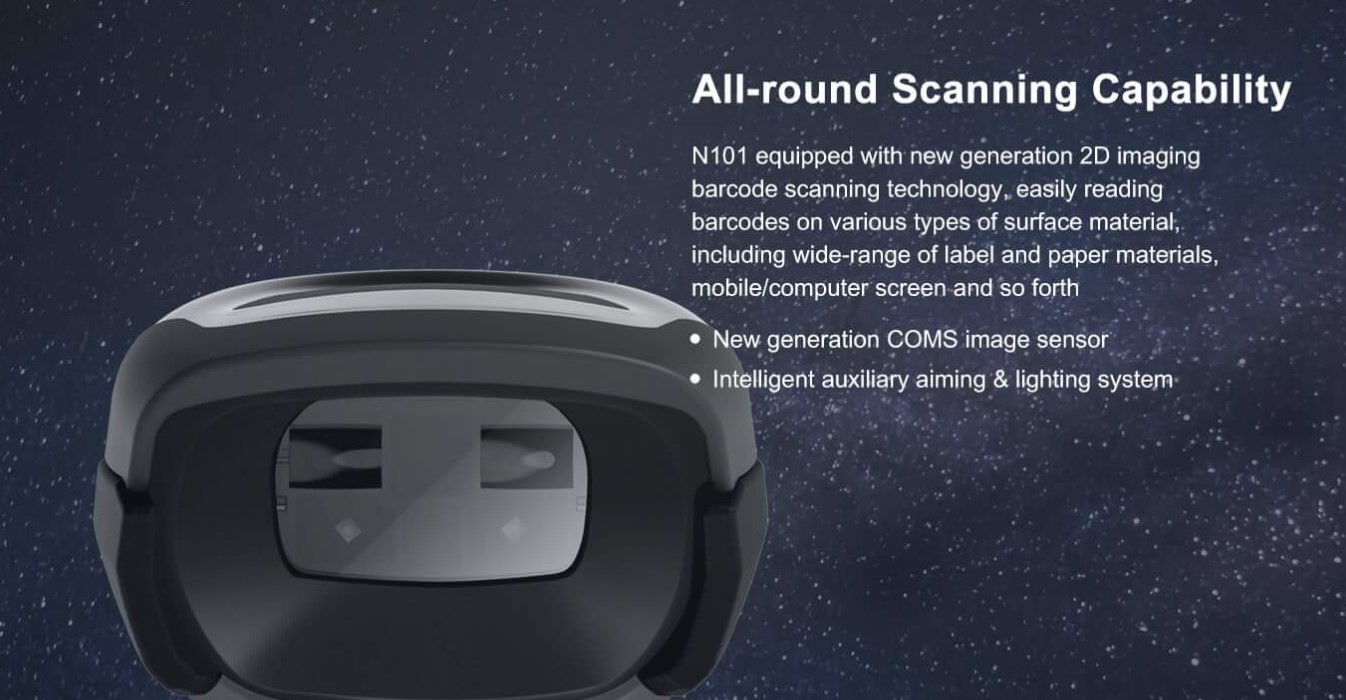

Screenshot_77 Screenshot_78 Screenshot_79 Screenshot_80 Screenshot_81 Screenshot_82

Scanning Parameter	Image Sensor	CMOS
	Pixel	640×480
	Illumination	Infrared LED
	Focus	Infrared LED
	Symbologies	2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc. 1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand, etc.
	Resolution	≥3mil
	Typical DOF	5mil Code39： 20mm–150mm EAN： 30mm–300mm 6.7mil PDF417： 25mm–130mm 10mil DM： 15mm–100mm 20mil QR： 15mm–210mm
	Recognition Sensitivity	Pitch±60º, Tilt360º, Skew±60º
	FOV	Horizontal: 32 °, Vertical: 25 °
	Symbol Contrast	≥20%
Physical Parameter	Dimension(mm)	83（D）67（W）175（H）
	Weight	128g
	Scanner Interface	RJ-45 Crystal Head
	Housing Materials	PC+TPU
	Notification	Buzzer, LED Indicator
	Interfaces	RS-232 Serial Port, USB, USB Virtual Serial Port
	Trigger Method	Manual keystroke, induction recognition, continuous recognition
Electrical Parameter	Operating Voltage	5VDC±10%
	Operating Current	Standby: 100mA, Working: 230mA
	Power	Standby: 0.5W,, Work: 1.15W
Environment Parameter	Operating Temperature	-20 ℃~+50℃
	Storage Temperature	-40℃~+70℃
	Relative Humidity	5%~95%（No Condensation）
	ESD	±15 kV（Air discharge ） ±8 kV（Direct discharge）
	Environment Luminosity	0~100, 000LUX
	Anti-shock Ability	1.5 m
	Protection Grade	IP42
	Certification	CE FCC RoHS
	Cable	USB: use to connect the scanner to the information receiving host RS-232: use to connect the scanner to the information receiving host
	AC Adapter	5V, coordinate with RS-232 cable to powerthe scanner
	Test Condition	Environment temperature: 23ºC Environment illumination: 300LUX filament lamp DOF depends on the resolution, contrast of the printing codebar, and the environment illumination

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Γενικά Χαρακτηριστικά

Κατασκευαστής	HPRT
Σύνδεση	USB, RS232(oprtional)

Τεχνικά Χαρακτηριστικά

Τύπος Σάρωσης	Bi-Directional
Υποστηριζόμενα Barcode	1D + 2D

Φυσικά Χαρακτηριστικά

Διαστάσεις	66,8 x 82.6 x 1746 mm

Εγγύηση

Εγγύηση	1 Έτος

Description

Scanning Parameter	Image Sensor	CMOS
	Pixel	640×480
	Illumination	Infrared LED
	Focus	Infrared LED
	Symbologies	2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc. 1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand, etc.
	Resolution	≥3mil
	Typical DOF	5mil Code39： 20mm–150mm EAN： 30mm–300mm 6.7mil PDF417： 25mm–130mm 10mil DM： 15mm–100mm 20mil QR： 15mm–210mm
	Recognition Sensitivity	Pitch±60º, Tilt360º, Skew±60º
	FOV	Horizontal: 32 °, Vertical: 25 °
	Symbol Contrast	≥20%
Physical Parameter	Dimension(mm)	83（D）67（W）175（H）
	Weight	128g
	Scanner Interface	RJ-45 Crystal Head
	Housing Materials	PC+TPU
	Notification	Buzzer, LED Indicator
	Interfaces	RS-232 Serial Port, USB, USB Virtual Serial Port
	Trigger Method	Manual keystroke, induction recognition, continuous recognition
Electrical Parameter	Operating Voltage	5VDC±10%
	Operating Current	Standby: 100mA, Working: 230mA
	Power	Standby: 0.5W,, Work: 1.15W
Environment Parameter	Operating Temperature	-20 ℃~+50℃
	Storage Temperature	-40℃~+70℃
	Relative Humidity	5%~95%（No Condensation）
	ESD	±15 kV（Air discharge ） ±8 kV（Direct discharge）
	Environment Luminosity	0~100, 000LUX
	Anti-shock Ability	1.5 m
	Protection Grade	IP42
	Certification	CE FCC RoHS
	Cable	USB: use to connect the scanner to the information receiving host RS-232: use to connect the scanner to the information receiving host
	AC Adapter	5V, coordinate with RS-232 cable to powerthe scanner
	Test Condition	Environment temperature: 23ºC Environment illumination: 300LUX filament lamp DOF depends on the resolution, contrast of the printing codebar, and the environment illumination
