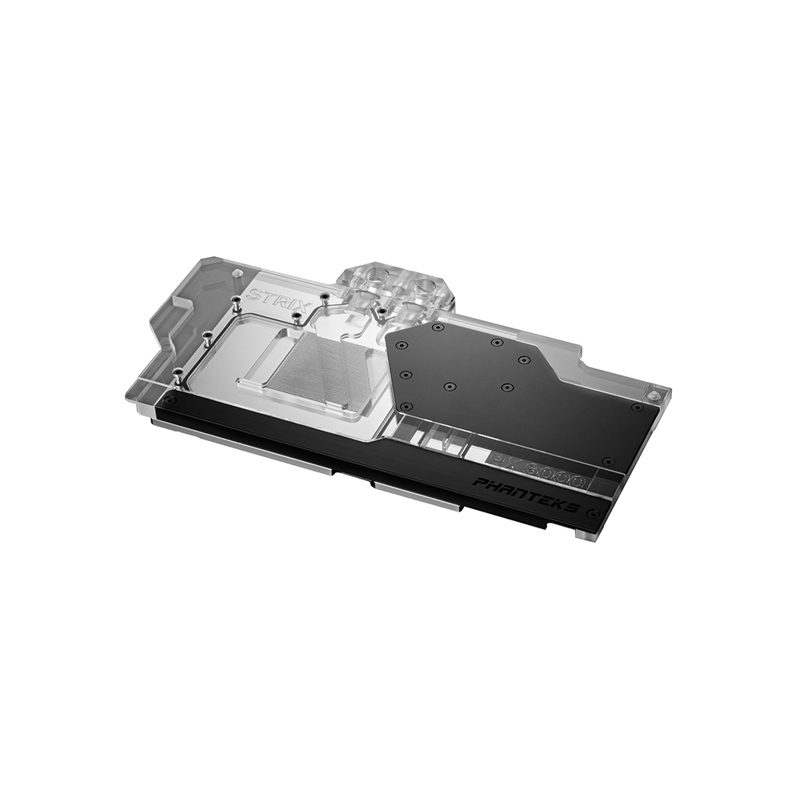

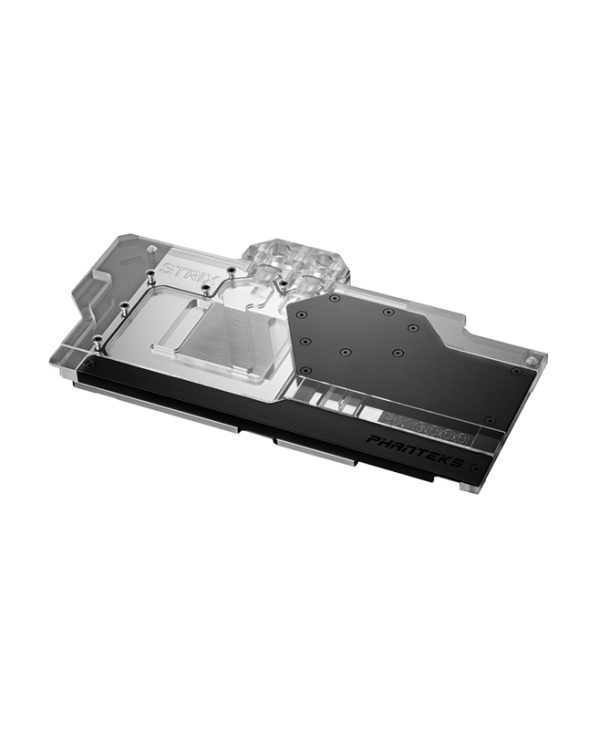

PHANTEKS Glacier G6000 STRIX GPU Water Block ASUS RX 6800/6900 Strix/TUF DRGB Black PH-GB6900ASSRX_BK01

The features of the PHANTEKS Glacier G6000 Strix water cooler:
Custom-fit for ASUS ROG Strix / TUF AMD RX 6800/6900 graphics cards
Effective cooling performance thanks to the base made of nickel-plated copper
Impressive look thanks to the acrylic glass cover with aluminum cover
Four G1 / 4-inch connections for integration into the circuit
Digitally addressable RGB-LED lighting (15 LEDs, 3-pin, 5VDG)
Reliable and durable sealing rings made of Viton

PHANTEKS Glacier G6000 Strix: optics and connections
The PHANTEKS Glacier G6000 Strix is a water cooler for custom water cooling in full block design. The cooler covers all relevant heat sources of the graphics card and keeps them at temperature – i.e. the GPU, the memory and the voltage converter. The nickel-plated copper base ensures an effective removal of the heat due to the high thermal conductivity and the optimized channel structure. The high-flow design keeps the resistance low and ensures a high flow of water.

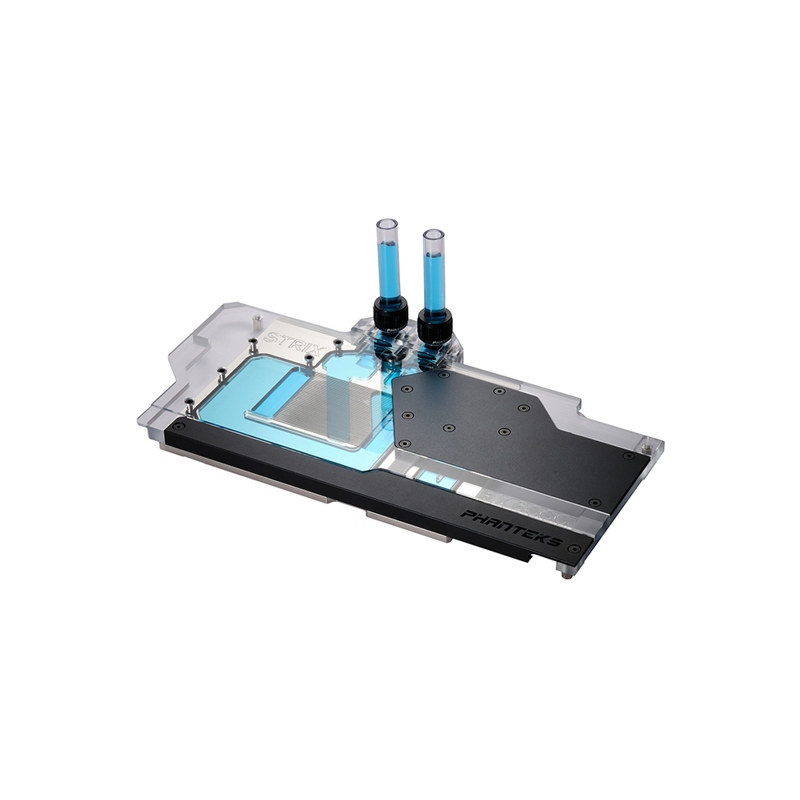

The lid is made of transparent acrylic glass and a cover made of chrome-plated aluminum. The connection terminal has four holes (G1 / 4 inch thread). Due to the flat design of the cooler, it is also possible to connect several graphics cards in a network without any problems.

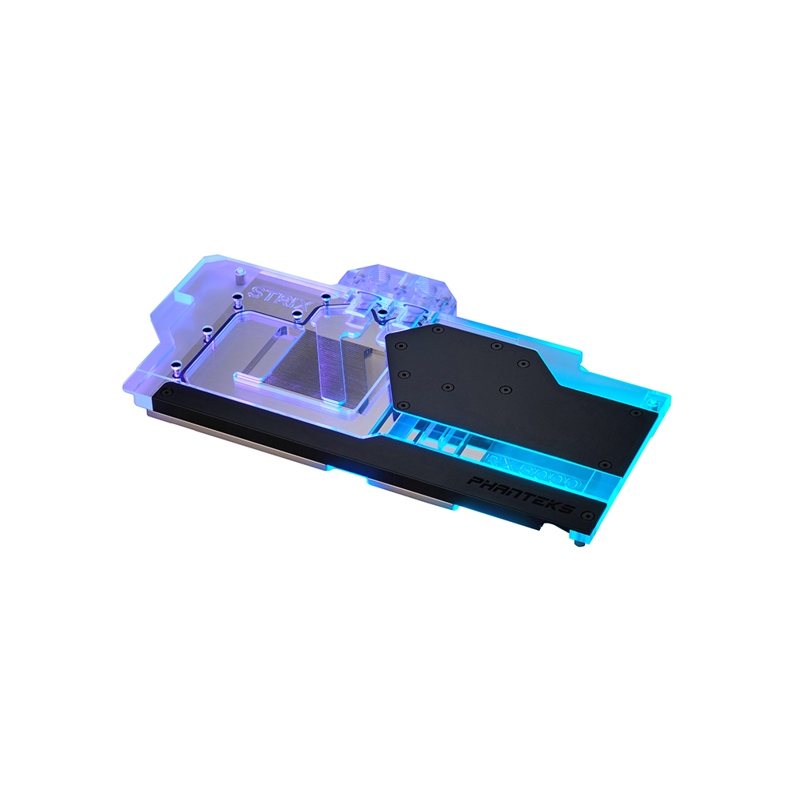

The digitally addressable RGB-LED lighting is equipped with the same RGB connections that are also used in other PHANTEKS products and can be controlled via the RGB-LED controller (if available) of a PHANTEKS housing. A 3-pin connector (5VDG) can be used to connect to corresponding mainboards. The RGB LEDs are compatible with Gigabyte RGB Fusion, ASRock Polychrome Sync, ASUS Aura Sync, MSI Mystic Light and Razer Chroma.

The sealing ring of the PHANTEKS Glacier G6000 Strix is made of high quality Viton. The material is also used in the aerospace industry. It has an extremely long shelf life and is highly resistant to high temperatures and reactive liquids.

WHY SHOULD I COOL MY GRAPHIC CARD WITH WATER?
In the graphics card segment, top performance is still bought at the price of equally top heat development. Because only if the clock screw is turned all the way and the calculation units are used up to the last segment can the decisive advantage over the competing products be achieved. Smaller structure widths and more efficient layouts can counteract this, but not completely prevent it. Because, as expected, the next generation will also be pushed to the max.

The problem is exacerbated by your own overclocking, because the temperatures can reach critical values. In short: If you want a low volume during gaming or even when benching and possibly want to turn the clock screw at the same time, you can hardly avoid water cooling. In addition to the usual components (radiator, pump, expansion tank), a suitable cooler is of course required for the graphics cards – like this model from Wakü specialist PHANTEKS.

Note 1: Connections that are not included in the scope of delivery are required for integration into the cooling circuit. The original cooler must be removed before assembly, which invalidates the manufacturer’s guarantee!

Note 2: The compatibility can always be expanded to include new graphics cards and the scope of delivery may change in rare cases. Therefore, please check the manufacturer’s website before purchasing whether the PHANTEKS water cooler can be used and which accessories are included with the item.

Attention: Please note that some coolers are delivered with a protective film on the underside. This must always be removed before assembly and commissioning. We do not accept any liability for damage caused by incorrect or incorrect assembly or improper use!

Technical details:
– Material: nickel-plated copper (base), acrylic (lid), aluminum (cover), brass (sealing plug), Viton (sealing rings)
– Black
– Thread: 4x G1 / 4 inches
– Dimensions: 151.3 x 19 x 277 mm (W x H x D)
– Weight: 1.15 kg (without liquid)
– Lighting:
– – Quantity: 15 RGB LEDs
– Connection: 3-pin, 5VDG
– Compatibility: ASRock Polychrome Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, ASUS Aura Sync, Razer Chroma
– Compatibility:
– ASUS Radeon RX 6800 ROG Strix O16G
– ASUS Radeon RX 6800 TUF O16G
– ASUS Radeon RX 6800 XT ROG Strix LC O16G
– ASUS Radeon RX 6800 XT TUF O16G
– ASUS Radeon RX 6900 XT ROG Strix LC O16G
– ASUS Radeon RX 6900 XT TUF O16G
– Scope of delivery:
– 1x PHANTEKS Glacier G6000 Strix water cooler
– 1x PH-NDC thermal paste
– 2x PHANTEKS sealing plugs
– 1x digital RGB LED (pre-installed)
– 1x D-RGB LED cable (for PHANTEKS housing)
– 14x thermal pads 1 (10 x 12 x 0.5 mm)
– 1x thermal pad 2 (67 x 12 x 0.5 mm)
– 1x thermal pad 3 (107 x 12 x 0.5 mm)
– 1x thermal pad 4 (60 x 8 x 1 mm)
– 1x thermal pad 5 (105 x 8 x 1 mm)
– 1x thermal pad 6 (20 x 12 x 1.75 mm)
– 15x M2.5×5 screws and washers
– 1x instruction manual
– Manufacturer’s guarantee: 2 years
