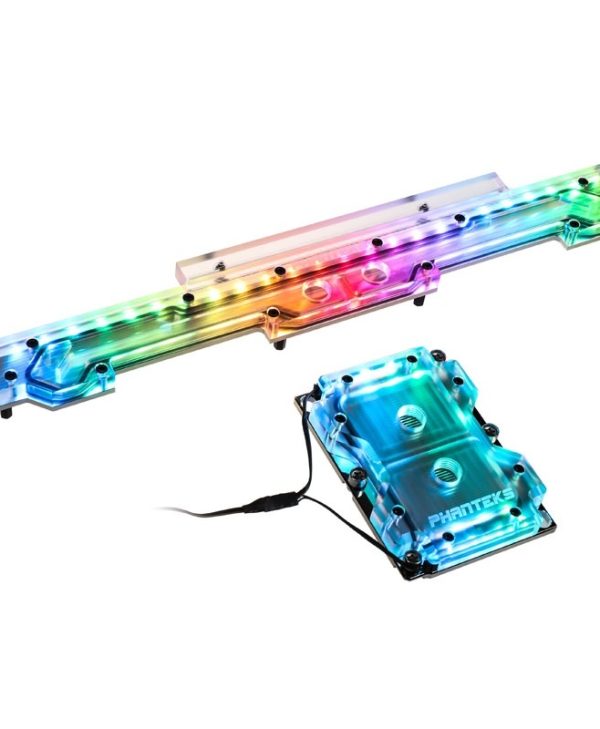

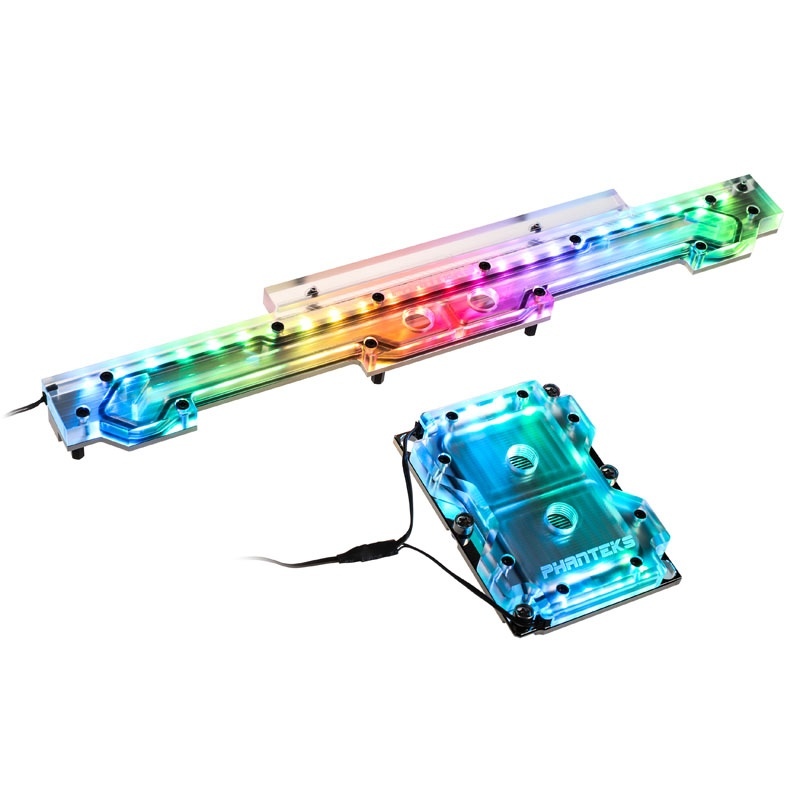

Phanteks Glacier DRGB Cooler Kit for Asus ROG Dominus Extreme PH-ASDOMKT_01

The PHANTEKS Glacier Cooler Kit ASUS ROG Dominus Extreme:
– Water Coolers for Intel LGA 3647 Narrow P High End CPUs
– Including cooling block for voltage converters (VRMs) of the mainboard ASUS ROG Dominus Exterme
– Nickel plated copper heat sink + transparent acrylic lid
– High quality workmanship and elegant design
– Cover the complete IHS and voltage transformer for optimal cooling results
– Integrated digitally addressable RGB LED lighting

The PHANTEKS Glacier Cooler Kit ASUS ROG Dominus Extreme in detail
The ASUS ROG Dominus Extreme Glacier Cooler Kit is only compatible with Intel processors with LGA 3647 Narrow P socket. Specially designed for this socket, it covers the entire IHS of large-area CPUs, guaranteeing optimum cooling of these high-performance, high-end processors. It consists of a nickel-plated full copper heat sink with a transparent lid made of acrylic glass. The fine fins in the heat sink enlarge the surface and thus facilitate the heat exchange between the bottom plate and the liquid flowing above.

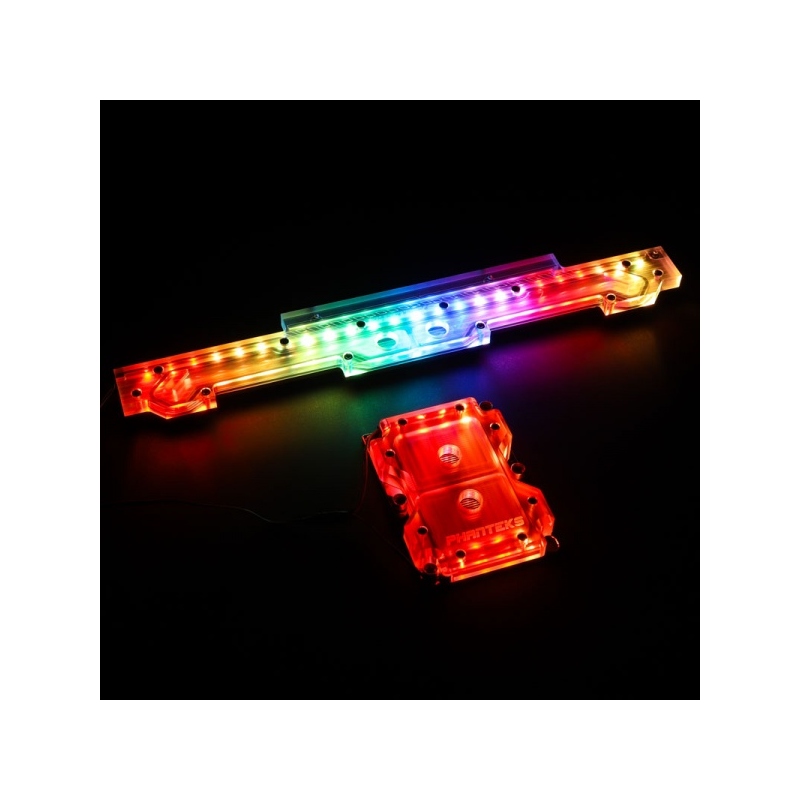

As an optical highlight, the integrated digitally addressable RGB LED lighting sets the cooler and the flowing liquid in scene. The lighting is connected via a 3-pin RGB connector (5VDG) to a compatible mainboard and can be synchronized and adapted via the mainboard manufacturer’s RGB software.

The two G1 / 4-inch threads are integrated into the cooling circuit. The universal threads allow the use of all common hose and hard-tube connections. The connection seals are made of plastic Viton, which has already proven itself in the automotive industry and in aircraft construction. It is particularly resistant to extreme temperatures and aggressive liquids. The pre-installed holding mechanism facilitates installation and also the necessary thermal paste is included in the delivery.

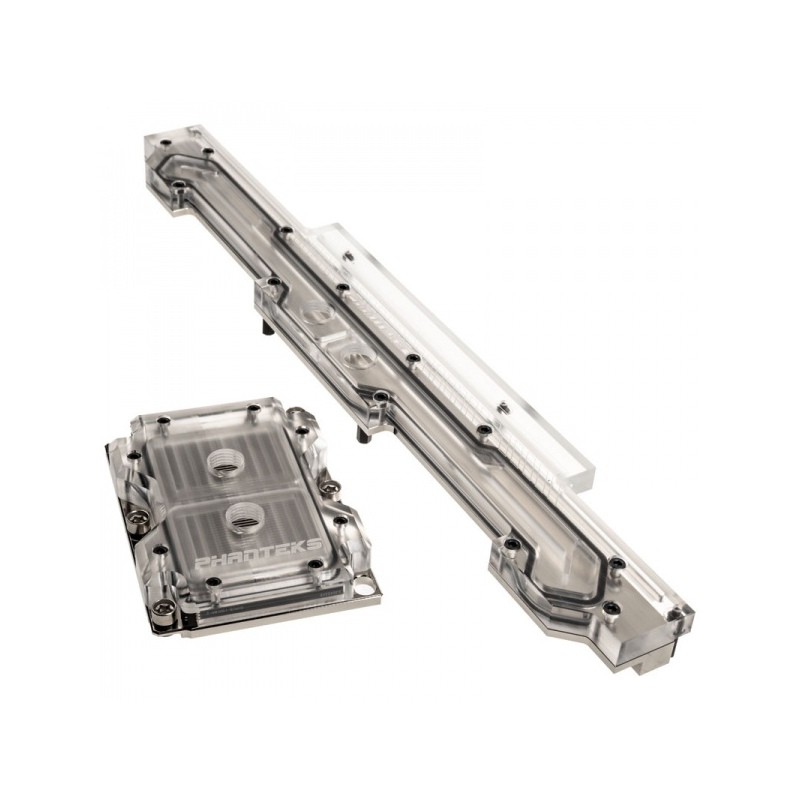

In addition, another waterblock is included, which covers the entire voltage converter or VRMs of the ASUS motherboard ROG Dominus Extreme, which are located on the RAM sockets. Made from the same materials as the CPU waterblock and in the same design, the VRM Waterblock is the perfect complement to the CPU cooler. Combined, the cooler kit is ideal for enthusiasts who want to get the last ounce of power out of their high-end PC.

Technical details:
Dimensions:
– CPU Waterblock (W x H x D): 108 x 78 x 9.5 mm
– VRM Waterblock (W x H x D): 352 x 32 x 10 mm
– Material: Copper (nickel plated), acrylic, Viton
– silver
Connections:
– 2x G1 / 4-inch thread (CPU cooler)
– 2x G1 / 4-inch thread (Waterblock ASUS ROG Dominus Extreme)
Socket compatibility:
– Intel LGA 3647 – Narrow P
– ASUS ROG Dominus Extreme
Delivery:
– Glacier C3647i Narrow Socket CPU Block
– Glacier Dominus Extreme VRM Block
– mounting material
– Thermal Compounds
